HS series fully computerized “vacuum transfer top printer” dryer (slotter)die cutter machine

Contact Now

Detailed Product Description

Machine video link:
www.youtube.com/watch?v=mpd3HXjs0KE
www.youtube.com/watch?v=5aHqH5t1eW8
www.youtube.com/watch?v=SJrWxIUbAnU
www.youtube.com/watch?v=8hpQz7mHhmg
www.youtube.com/watch?v=TTHgCwx5Ww0
www.youtube.com/watch?v=N30cQOifhS0

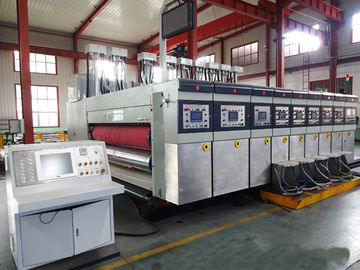

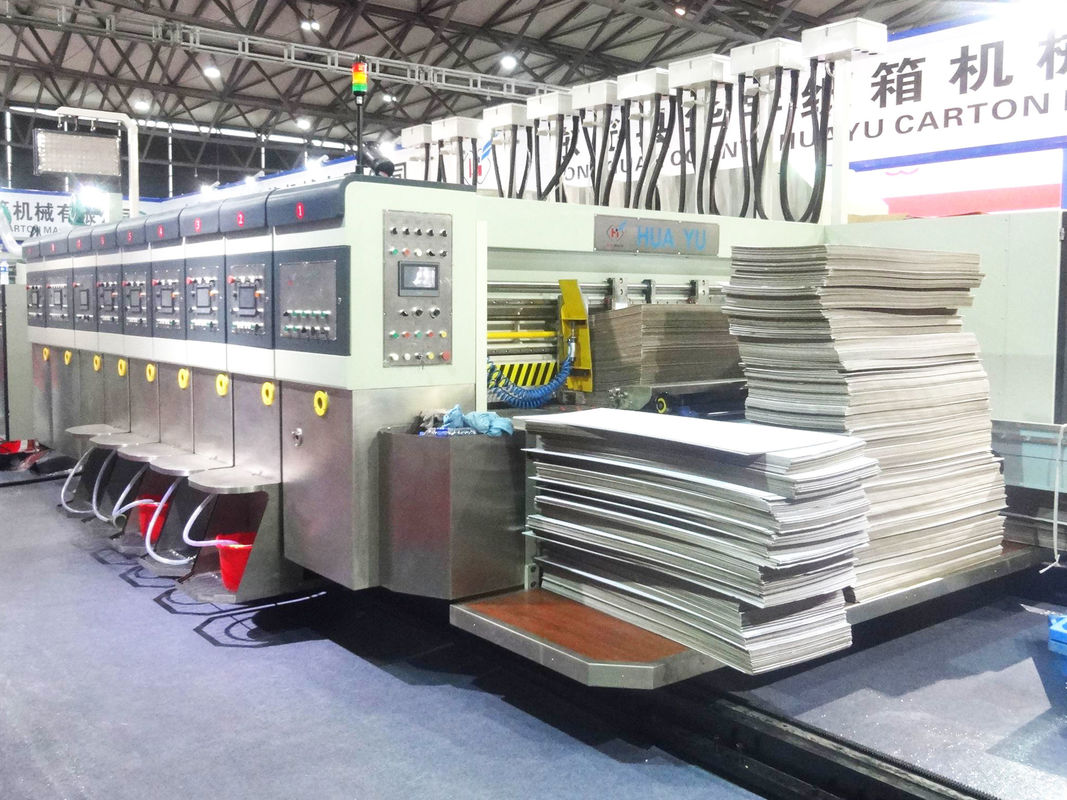

HX series fully computerized corrugated carton box “vacuum transfer top printer “ include feeding unit, print unit, drying unit, slotting and die cutting unit. Fully computerized setting, fully vacuum transfer. Printer unit with ceramic roller and doctor blade system. Fully computerized slotting unit. Carton box height length width computerized setting. Easy to change order. Suitable for the large quantity carton box produce.

Machine Unit	Main specification

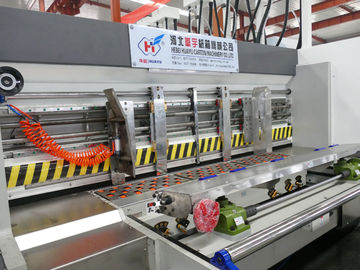

Computerized Feeder unit	1.Taiwan technology Lead edge feeder 2.dust suction device 3. with touch screen control 4. with static electricity removal, multi-row brushes, multiple dust-collecting fans to remove dust 5.feeding pressure computerized setting

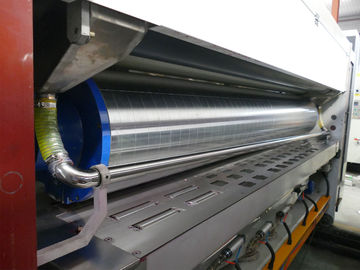

Computerized Print unit	1.“top print” vacuum absorb transfer cardboard 2.ceramic roller anilox roller 3.with doctor blade systerm 4.quick hanging plate tilt correction technology 5. feeding pressure computerized setting

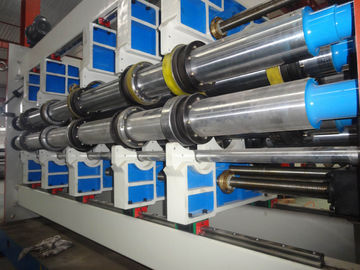

Computerized Slotter unit	1.slot unit can be control by main touch screen and slot unit touch screen 2. Liner guideway lateral moving device with universal cross joints. 3. Pre-creaser, creaser slotting pressure touch screen setting 4.Box height touch screen setting 5.Large displacement of middle knife.

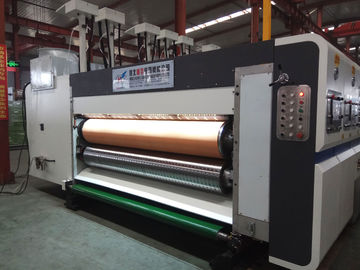

Computerized Die cutter unit	1.Precision type "speed difference compensation system 2.speed difference compensation mechanism 3.imported soft anvil, rubber pad and grinding mechanism 4.feeding pressure computerized setting

MAIN PARAMETER
Model	920	1224	1228	1628	1632
Max. design speed(pcs/min)	350	300	250	200	200
Working speed (pcs/min) (according cardboard size and printing )	0-300	0-250	0-220	0-180	0-160
Max feeding size (mm)	900 × 2000	1200x2400	1200x2800	1600x2800	1600x3200
Skip feeding size(mm)	1000 × 2000	1600x2400	1600x2800	2000x2800	2000x3200
Max printing size(mm)	850 × 1950	1150x2350	1150x2750	1550x2750	1550x3150
Min. feeding size (mm)	300 × 650	360x690	360x690	450x690	450x690
Standard printing plate thickness	7.2 mm	7.2mm	7.2mm	7.2mm	7.2mm
Max. Die cutting size(mm)	850 × 1950 mm	1150x2350	1150x2750	1550x2750	1550x3150

(Size can be customized according to customer requirements)
