ZXJ-D series double pieces carton box gluer machine

ZXJ-D series double pieces carton box gluer machine

    • ZXJ-D series double pieces carton box gluer machine
    • ZXJ-D series double pieces carton box gluer machine
    • ZXJ-D series double pieces carton box gluer machine
    • ZXJ-D series double pieces carton box gluer machine
  • ZXJ-D series double pieces carton box gluer machine

    Product Details:

    Contact Now
    Detailed Product Description

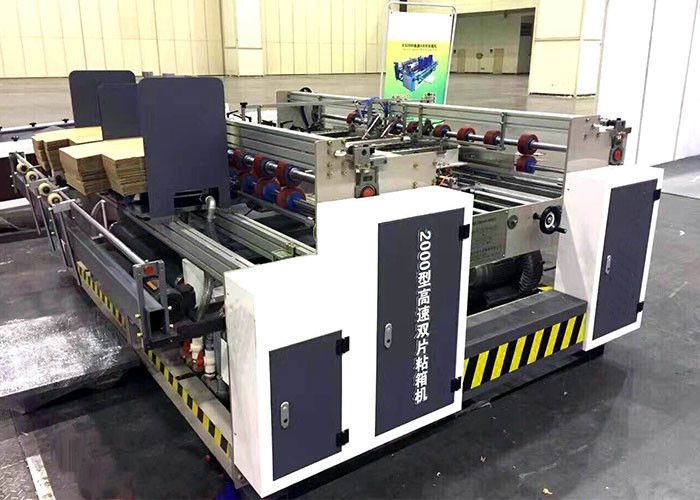

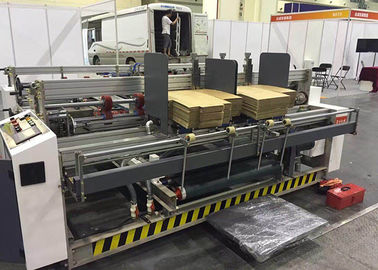

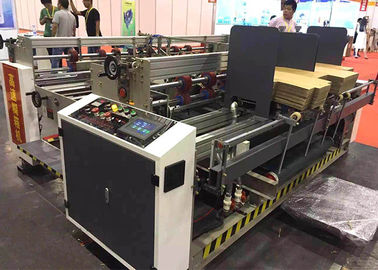

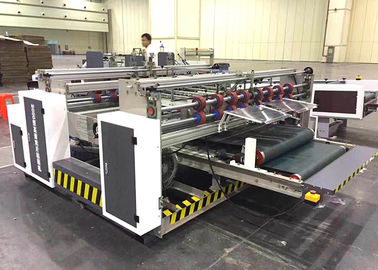

    ZXJ-D series double pieces carton box gluer machine



    Youtube video link
    https://youtu.be/nHtB6v9vM68

    The machine is specially used to fold and glue AB papers (2 pcs of corrugated paper) into cartons Present AB carton produce methods: 1. Traditionally manual glue and stick together. 2. Old style folder and gluer glue and then manual stick. With the above 2 methods, labor intensity is high and efficiency is low and the stick precision and quality is hard to control. 3. AB paper folder and gluer resolved the above problems with advanced working method.


    1. The feeding unit of the machine has two paper board stack to hold AB two pieces of papers, which helps to improve the production efficiency. Below adopt the air sucking structure, which is conducive to improve transport efficiency and accuracy.
    2. Connecting unit adopts hot melt adhesive, four side gauge positioning, ensuring accurate register and high precision.
    3. Folding unit adopts manual fold, which resolve the problem of hard to confirm fold place. The overlap margin can be controlled effectively.
    4. The machine can be operated by two person. One stacks papers and collect finished job. The other fold the papers and feed them into compressing belt. The whole machine is of easy operation even for green hand.



    Model ZXJ-2400
    Max. paper size (single) 1200 × 800mm
    Min. paper size (single) 450 × 320mm
    Thickness of sheet From A to E flute & under 8mm 5 ply sheet
    Working Speed 0-80m/min
    Total power 7.5 kw
    Overall dimension 3570X3300X1200mm
