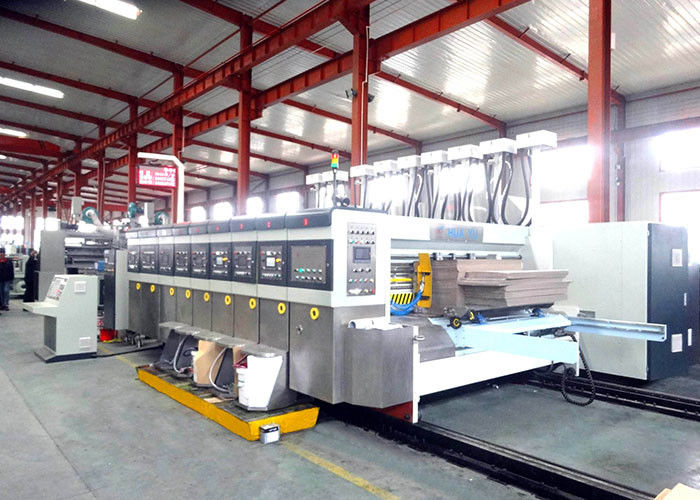

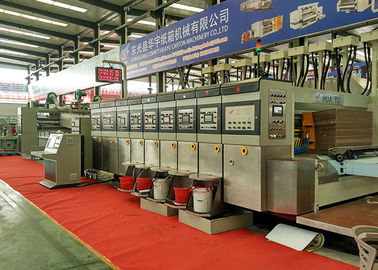

HS-A series fully computerized corrugated carton box “inline flexo folder gluer “ include feeding unit, print unit, drying unit, slotting, die cutting unit, folder gluer unit and auto bundle unit Fully computerized setting, fully vacuum transfer. Fully computerized slotting unit. Carton box height length width computerized setting. Servo driven folder gluer unit, one time finishing the carton box printing, cutting and gluing. Easy to change order. Suitable for the large quantity carton box produce.
Machine Unit | Main specification |
Computerized Feeder unit |
1.Taiwan technology Lead edge feeder 2.dust suction device 3. with touch screen control 4. with multi-row brushes, multiple dust-collecting fans to remove dust 5.feeding pressure computerized setting |

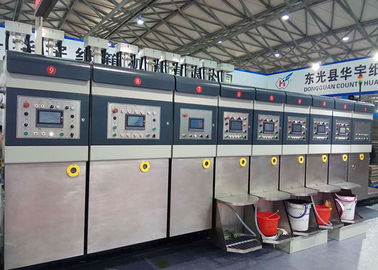

Computerized Print unit |
1.“top print” vacuum absorb transfer cardboard 2.ceramic roller anilox roller 3.with doctor blade systerm 4.quick hanging plate tilt correction technology 5. feeding pressure computerized setting |
Computerized Drying unit |
1. single unit 2. vacuum absorb transfer cardboard 3. Blow cold air / electric heating hot-air drying 4.feeding pressure computerized setting |

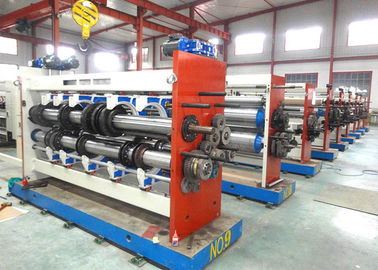

Computerized Slotter unit |
1.slot unit can be control by main touch screen and slot unit touch screen 2. Liner guideway lateral moving device with universal cross joints. 3. Pre-creaser, creaser slotting pressure touch screen setting 4.Box height touch screen setting 5.Large displacement of middle knife. |
Computerized Die cutter unit |
1.Precision type "speed difference compensation system 2.speed difference compensation mechanism 3.imported soft anvil, rubber pad and grinding mechanism 4.feeding pressure computerized setting |
Servo control Folder gluer unit | Bottom folder gluer |
Vacuum transfer cardboard | |
big gluing wheel, reticulation gluing, motorized control glue wheel position. | |
Servo motor control folder gluer | |
Box size touch screen computerized adjust | |
Auto bundle unit | PP Belt bundle |
Automatic square the carton | |
one line bundle or two line bundle |
MAIN PARAMETER | |||||
Model | 920 | 924 | 1224 | 1228 | 1628 |
Max. design speed(pcs/min) | 350 | 350 | 300 | 220 | 200 |
Working speed (pcs/min) (according cardboard size and printing ) |
0-300 | 0-280 | 0-250 | 0-220 | 0-180 |
Max feeding size (mm) | 900 × 2000 | 900 × 2000 | 1200x2400 | 1200x2800 | 1600x2800 |
Skip feeding size(mm) | 1000 × 2000 | 1000 × 2000 | 1600x2400 | 1600x2800 | 2000x2800 |
Max printing size(mm) | 850 × 1950 | 850 × 1950 | 1150x2350 | 1150x2750 | 1550x2750 |
Min. feeding size (mm) | 300 × 765 | 300 × 765 | 360x785 | 360x785 | 450x850 |
Min fold size | 240x120 | 240x120 | 250x120 | 250x120 | 270x120 |
Standard printing plate thickness | 7.2 mm | 7.2 mm | 7.2mm | 7.2mm | 7.2mm |
Max. Die cutting size(mm) | 850 × 1950 mm | 850 × 1950 mm | 1150x2350 | 1150x2750 | 1550x2750 |
(Size can be customized according to customer requirements)
