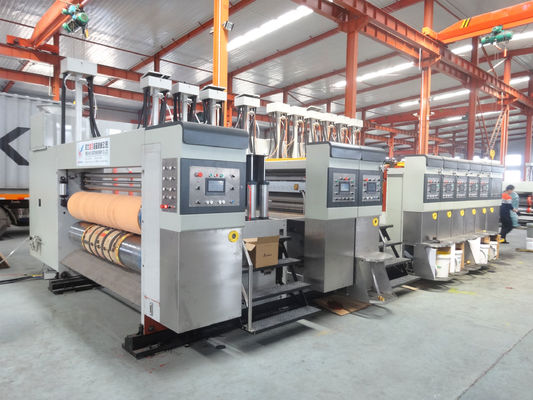

HS series fully computerized corrugated carton box high definination printing drying coating die cutting machine include feeding unit, print unit, drying unit, coating unit and die cutting unit. Fully computerized setting, fully vacuum transfer. Printer unit with ceramic roller and doctor blade system. Suitable to print on coating corrugated cardboard with high definition. Printing similar like offset printing. One time can do printing and cutting. Easy operation. High effective.
| Machine Unit | Main specification |
| Computerized Feeder unit |
1.Taiwan technology Lead edge feeder 2.dust suction device 3.extend feeding adjust 4.with touch screen control 5. with static electricity removal, multi-row brushes, multiple dust-collecting fans to remove dust 6.feeding pressure computerized setting |
| Computerized Print unit |
1.“top print” vacuum absorb transfer cardboard 2.ceramic roller anilox roller 3.with doctor blade systerm 4.quick hanging plate tilt correction technology 5. feeding pressure computerized setting |
| 1st Drying unit |
1. size 1200mm 2. vacuum absorb transfer cardboard 3. Blow cold air / electric heating hot-air drying 4.feeding pressure computerized setting |
| Computerized coater unit |
1.“top print” vacuum absorb transfer cardboard 2.ceramic roller anilox roller 3.with doctor blade systerm 4.quick hanging plate tilt correction technology 5.feeding pressure computerized setting |
| 2nd Drying unit |
1. size1800mm 2.vacuum absorb transfer cardboard 3.Blow cold air / electric heating hot-air drying 4.feeding pressure computerized setting |
| Computerized Die cutter unit |
1.Precision type "speed difference compensation system 2.speed difference compensation mechanism 3.imported soft anvil, rubber pad and grinding mechanism 4.feeding pressure computerized setting |
| MAIN PARAMETER | |||||
| Model | 920 | 1224 | 1228 | 1624 | 1628 |
| Max. design speed(pcs/min) | 300 | 250 | 250 | 200 | 200 |
|
Working speed (pcs/min) (according cardboard size and printing ) |
0-250 | 0-200 | 0-180 | 0-160 | 0-160 |
| Max feeding size (mm) | 900 × 2000 | 1200x2400 | 1200x2800 | 1600x2400 | 1600x2800 |
| Skip feeding size(mm) | 1000 × 2000 | 1600x2400 | 1600x2800 | 2000x2400 | 2000x2800 |
| Max printing size(mm) | 850 × 1950 | 1150x2350 | 1150x2750 | 1550x2350 | 1550x2750 |
| Min. feeding size (mm) | 300 × 650 | 360x690 | 360x690 | 450x690 | 450x690 |
| Standard printing plate thickness | 7.2 mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm |
| Max. Die cutting size(mm) | 850 × 1950 mm | 1150x2350 | 1150x2350 | 1550x2750 | 1550x2750 |
(Size can be customized according to customer requirements)
