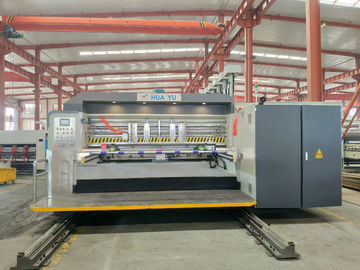

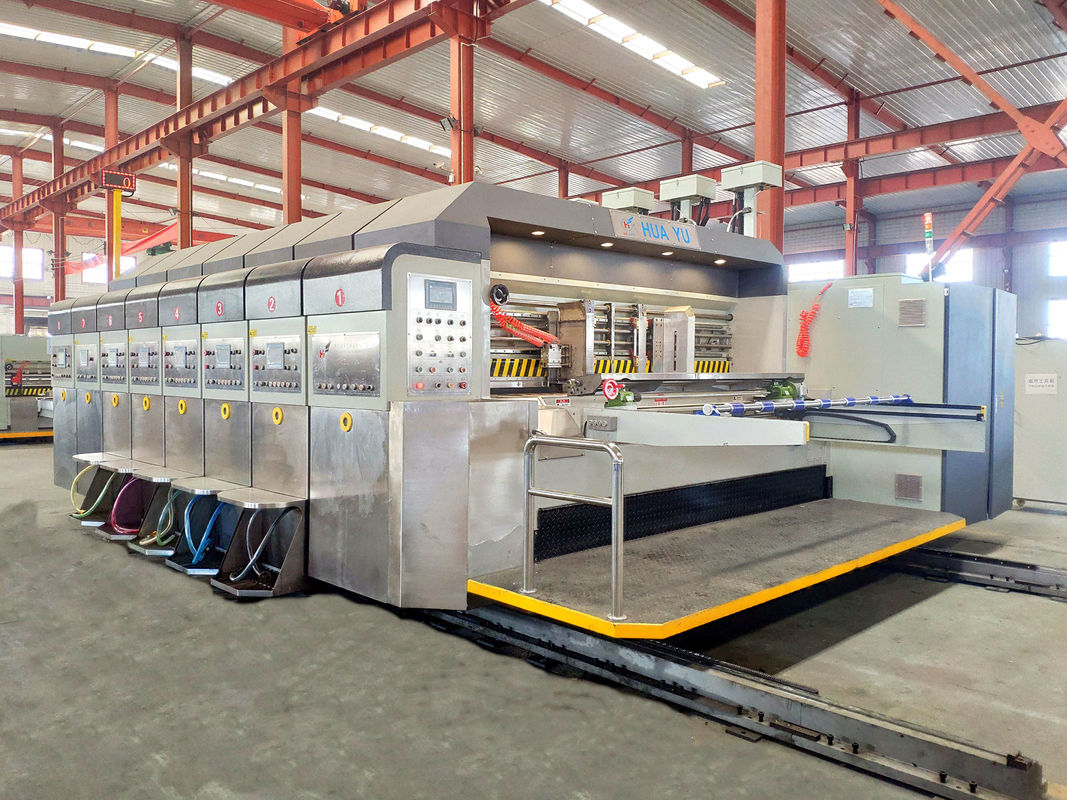

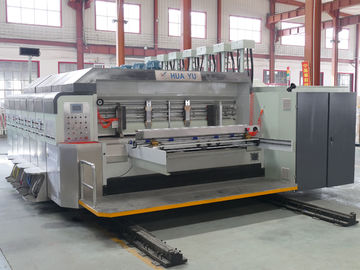

HX series fully computerized corrugated carton box “vacuum transfer bottom printer “ include feeding unit, print unit, drying unit, slotting unit and die cutting unit. Fully computerized setting, fully vacuum transfer. Printer unit with ceramic roller and doctor blade system. It is the very popular machine at Europe and the United States market.
| Machine Unit | Main specification |
| Computerized Feeder unit |
1.Taiwan technology Lead edge feeder 2.dust suction device 3. with touch screen control 4. with static electricity removal, multi-row brushes, multiple dust-collecting fans to remove dust 5.feeding pressure computerized setting |

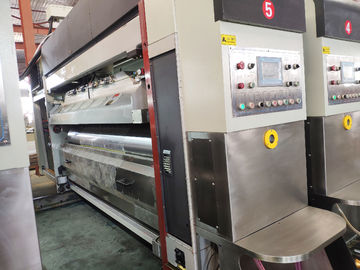

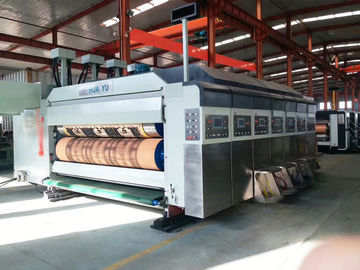

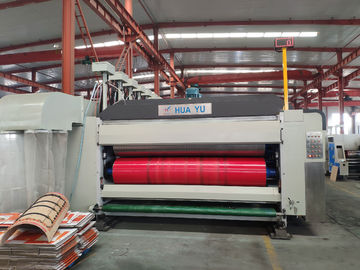

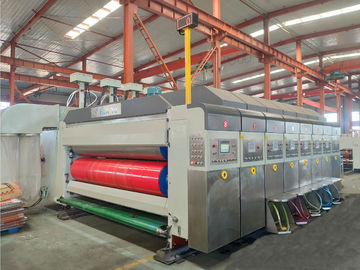

| Computerized Print unit |
1.“bottom print” vacuum absorb transfer cardboard 2.ceramic roller anilox roller 3.with doctor blade systerm 4.quick hanging plate tilt correction technology 5. feeding pressure computerized setting |
| Computerized Drying unit |
1. single unit 2. vacuum absorb transfer cardboard 3. Blow cold air / electric heating hot-air drying 4.feeding pressure computerized setting |
| Computerized coater unit |
1.“bottom” vacuum absorb transfer cardboard 2.ceramic roller anilox roller 3.with doctor blade systerm 4.quick hanging plate tilt correction technology 5.feeding pressure computerized setting |

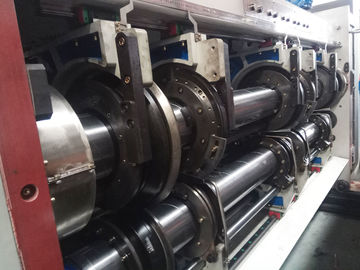

| Computerized Slotter unit |
1.slot unit can be control by main touch screen and slot unit touch screen 2. Liner guideway lateral moving device with universal cross joints. 3. Pre-creaser, creaser slotting pressure touch screen setting 4.Box height touch screen setting 5.Large displacement of middle knife. |
| Computerized Die cutter unit |
1.Precision type "speed difference compensation system 2.speed difference compensation mechanism 3.imported soft anvil, rubber pad and grinding mechanism 4.feeding pressure computerized setting |
| MAIN PARAMETER | |||||
| Model | 920 | 1224 | 1228 | 1628 | 1632 |
| Max. design speed(pcs/min) | 350 | 300 | 250 | 200 | 200 |
|
Working speed (pcs/min) (according cardboard size and printing ) |
0-300 | 0-250 | 0-220 | 0-180 | 0-160 |
| Max feeding size (mm) | 900 × 2000 | 1200x2400 | 1200x2800 | 1600x2800 | 1600x3200 |
| Skip feeding size(mm) | 1000 × 2000 | 1600x2400 | 1600x2800 | 2000x2800 | 2000x3200 |
| Max printing size(mm) | 850 × 1950 | 1150x2350 | 1150x2750 | 1550x2750 | 1550x3150 |
| Min. feeding size (mm) | 300 × 650 | 360x690 | 360x690 | 450x690 | 450x690 |
| Standard printing plate thickness | 7.2 mm | 7.2mm | 7.2mm | 7.2mm | 7.2mm |
| Max. Die cutting size(mm) | 850 × 1950 mm | 1150x2350 | 1150x2750 | 1550x2750 | 1550x3150 |
(Size can be customized according to customer requirements)
