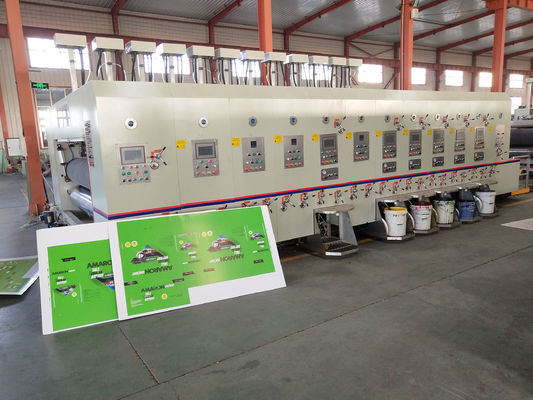

    HUAYU-A series automatic flexo printer slotter(die cutter)stacker machine



    Machine video link:
    www.youtube.com/watch?v=3hqizCKiPQE
    www.youtube.com/watch?v=LUxjCvxe6U0
    www.youtube.com/watch?v=H_DWxQRZ1gA
    www.youtube.com/watch?v=zVl5kvBSMDY
    www.youtube.com/watch?v=ebIgVEnUc8s
    www.youtube.com/watch?v=IbN4Q78JJZA
    https://youtu.be/gyKWbljoFeI



    (with ceramic roller and doctor blade)
    https://youtu.be/MvZyMVhCZJE
    www.youtube.com/watch?v=YIVDbZryMeg



    (jumbo printer slotter )
    https://youtu.be/vZt19pGAHPo



    HUAYU-A series automatic corrugated carton box “flexo printer slotter die cutter “ include feeding unit, print unit, slotting, die cutting unit, one time finishing the carton box printing, cutting.
    The Printer unit touch screen control phase movement. With hanging palte. save 999 order memory.
    The slotting unit . Carton box height length width computerized setting. The machine slotting unit can do the regular standard box, One time it can do slotting , creasing , slitting and flap cutting.
    The die cutting unit can do the abnormal shape type box by install the die tools. Difference die tools can produce difference type carton box. One time it also can produce 2 or 3 or more carton box.



    Machine Unit Main specification
    Feeder unit

    1. Lead edge feeder, feeding air pressure is adjustable

    2. dust suction brush with fan absorb

    3. motorized side squaring

    3. motorized adjust the side and back cardboard hold plate

    Print unit

    1. touch screen control printer roller phase movement

    2. hanging plate device. Easy to put printing palte

    3. have the 0 line, save printing memory

    4. ink automatic circulation. Lack ink alarm device

    Slotter unit

    1. touch screen control box height

    2. touch screen control box length and width.

    3. save box size memory

    Die cutter unit

    1. Die-cutting roll pneumatic self-locking device

    2. speed difference compensation mechanism

    3. rubber grinding knife

    4. Taiwan or Italy die cutter rubber

    Stacker unit

    1. With Up Down Safety Device

    2. Plc Control, Belt Frequency Conversion Control

    3. back holder with side square plate



    MAIN PARAMETER
    Model 920 1224 1228 1624 1628 1800x2800 2236 2536
    Max. design speed(pcs/min) 250 200 200 180 180 160 120 100

    Working speed (pcs/min)

    (according cardboard size and printing )

    0-220 0-180 0-180 0-160 0-150 0-140 0-100 0-80
    Max feeding size (mm) 900 × 2000 1200x2400 1200x2800 1600x2400 1600x2800 1800x2800 2200x3600 2500x3600
    Max printing size(mm) 850 × 1950 1150x2350 1150x2750 1550x2350 1550x2750 1750x2750 2150x3400 2450x3400
    Min. feeding size (mm) 280x630 360x690 360x690 420x730 420x730 450x750 550x860 650x900
    Min slot size Reverse 230x65 260x65 260x65 275x70 275x70 275x70 320x90 320x90
    Positive 145x145 160x160 160x160 165x165 165x165 175x175 190x190 190x190
    Standard printing plate thickness 7.2 mm 7.2mm 7.2mm 7.2mm 7.2mm 7.2mm 7.2mm 7.2mm

    (Size can be customized according to customer requirements)
